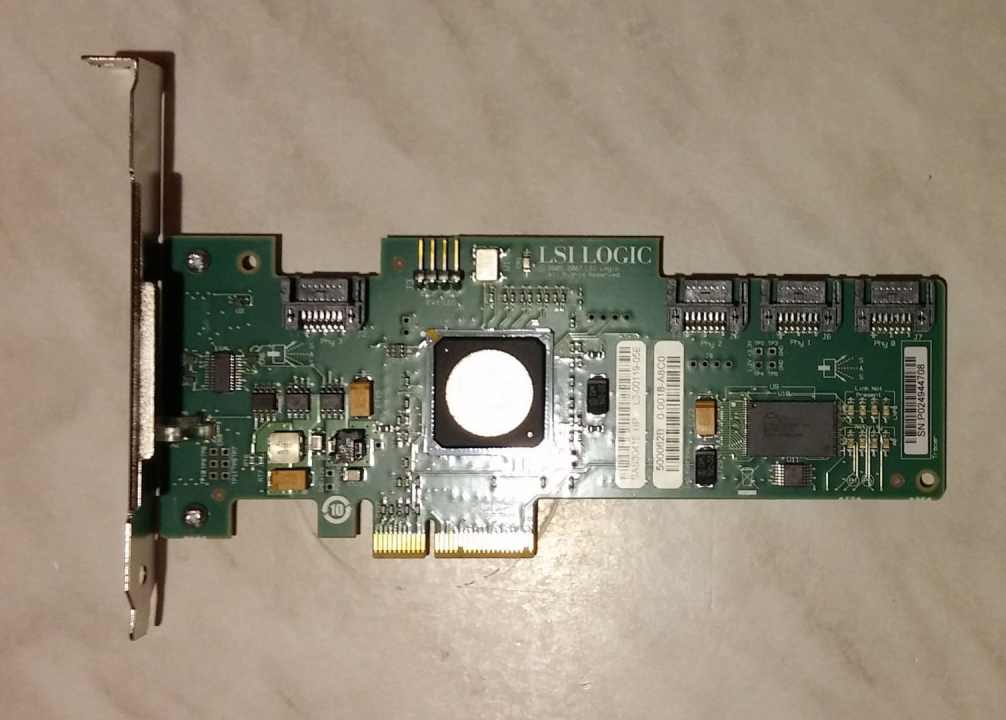

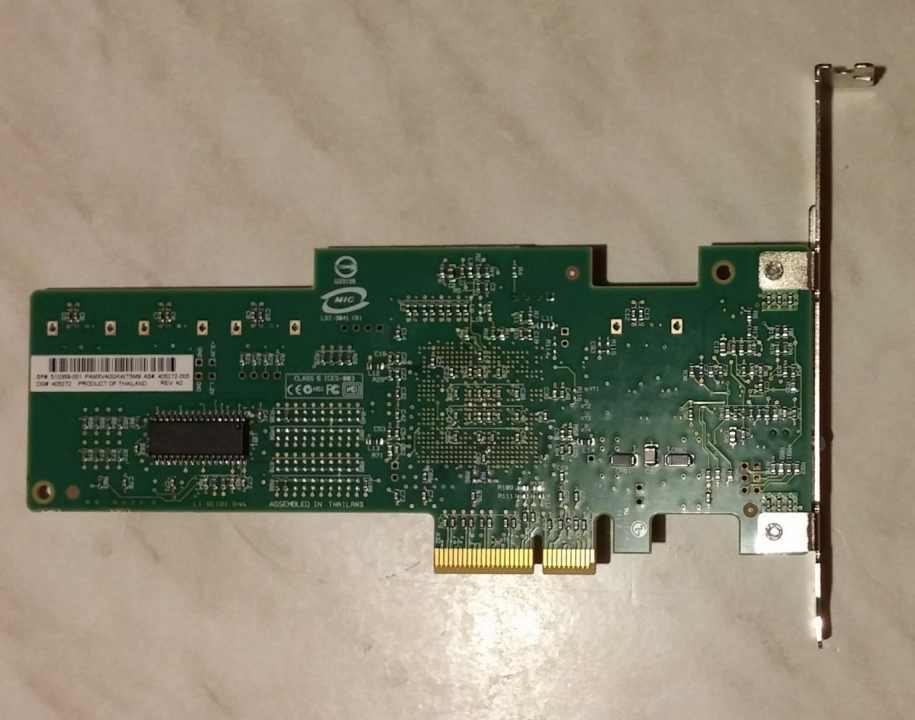

LSI SAS3041E-HP

Megy nem HP gépben is. Driver nélkül telepíthető rendszer a rá kötött eszközre. WIN7 és WIN10 alatt is tesztelve.

Normál sata kábellel csatlakoztatható rá meghajtó.

3Gb/s per port, 4 ports
Connects to both SAS/SATA drives
Wide Bus support with aggregate bandwidth of 2GB/s (full duplex)
Low-profile form factor
Fusion-MPT architecture featuring over 140,000 I/Os per second
Connects up to 128 internal devices
Supports major OSs
PCI Bus PCI-Express x4 lanes
PCI Modes Bus Master DMA
PCI data burst transfer rate 1.0 GBps ( half duplex ) 2.0 GBps ( full duplex )
SAS Bandwidths
Half Duplex
Single lane – 300 MBps
Wide Port (2 lanes) – 600 MBps
Wide Port (4 lanes) – 1200 MBps
Full Duplex
Single SAS Lane – 600 MBps
Wide Port (2 lanes) –1200 MBps
Wide Port (4 lanes) – 2400 MBps
PCI Card Type 3.3 volt add-in card
PCI Voltage 12 V ± 10%
PCI Form Factor 6.6 x 2.731 in (16.76 x 6.94 cm) (Low-profile)
PCI Power 7.5 Watts
Bracket Full height and Low-profile
Certification Level PCI-Express 1.0a
IO Bus Four 3Gbps SAS/SATA ports
SAS Processor LSISAS1064E
Internal Connectors Four- SATA x1 connectors
External Connectors None
Max. Number of SCSI Devices 128
LED Indicators On-board activity and fault LEDs
Integrated Mirroring Integrated Mirroring option available
Environments
Operating
Storage
Temperature
32° to 140° F (0° to 60° C)
-49° to +221° F (-45° to +105° C)
