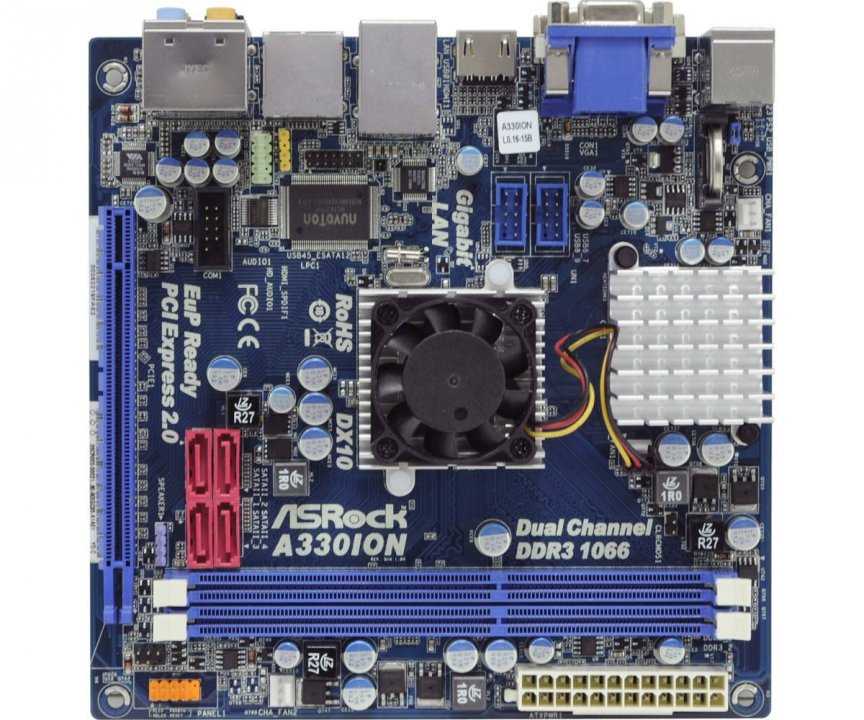

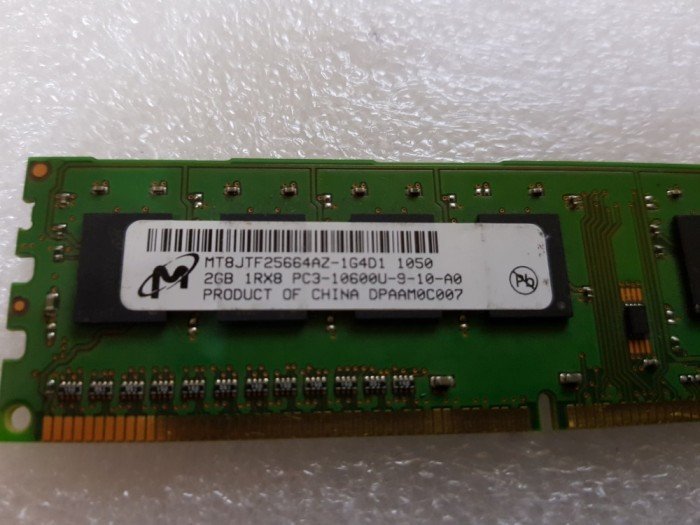

Asrock A330ION Atom procis +2x2GB DDR3 1333Ghz Micron MT8JSF25664AZ-1G4D1

Chip-készlet:
NVIDIA(R) MCP7A-ION
Processzor:
Intel(R) Dual-Core Atom Processor 330 (1.6 GHz)
FSB533 MHz
Hyper-Threading Technology
Untied Overclocking Technology
EM64T
Belső bővítő csatlakozók:
1 x PCI Express x16 slot
Dual Channel DDR3 memory technology
2 x DDR3 DIMM slots
DDR3 1066/800 non-ECC, un-buffered memory
Belső csatlakozók:
4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions*
1 x IR header
1 x COM port header
1 x HDMI_SPDIF header
CPU/Chassis FAN connector
24 pin ATX power connector
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)
Külső csatlakozók(színkóddal ellátva):
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x VGA/DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
4 x Ready-to-Use USB 2.0 Ports
2 x Powered eSATAII/USB Connectors
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Audio:
7.1 CH HD Audio (VIA(R) VT2020 Audio Codec)
Video:
Integrated NVIDIA(R) GeForce 9 Series
DX10 VGA, Pixel Shader 4.0
Max. shared memory 512MB
Three VGA Output options: D-Sub, DVI-D and HDMI
LAN:
Gigabit LAN 10/100/1000 Mb/s
Méret:
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
az alaplap OEM hátlap nincs garancia 3 nap 100% hibátlan tesztelve
BP XIX Vodafon 6035296
