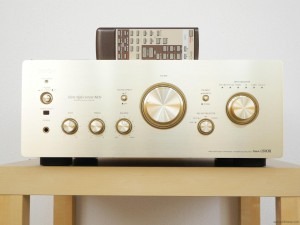

Archív – DENON PMA S-10II

Form Integrated Amplifier
<Power amplifier part>
Output power
(Both ch(es) drive, CD->SP out) 100W+100W (8 ohms, 20Hz - 20kHz, THD 0.07%)
200W+200W (4 ohms, 1kHz, THD 0.7%)
THD 0.01% (Output-power-3dB o'clock, 8 ohms, 1kHz)
Output terminal Speaker AorB: 4ohms - 16ohms
Speaker A+B: 8ohm-16ohm
At the time of bi-wiring: 4ohms - 16ohms
<Preamplifier part>
Input sensitivity/impedance Line: 150mV/47kohm (Source Direct off)
150mV/15kohm (Source Direct on)
Phono MM: 2.5mV/47kohm
Phono MC: 0.2mV/100 ohms
Equalizer amplifier output 150mV
RIAA deflection Phono MM: 20Hz-20kHz�}0.3dB
Phono MC: 30Hz-20kHz�}0.5dB
<Synthesis>
Signal to noise ratio (A network)
At the time of an input terminal short circuit Line:110dB
Phono MM: 91dB (at the time of a 5mV input)
Phono MC: 78dB (at the time of a 0.5mV input)
Tone control Bass: �}8dB (100Hz)
Treble: �}8dB (10kHz)
Power receptacle switched: Two lines, a total of 120W
unswitched: One line, 240W
Power supply voltage AC230V, 50Hz/60Hz
Power consumption 300W
Dimensions (a base, a knob, a terminal included) Width 434x height 181x depth of 485mm
Weight 30.0kg
