Eladó új, FEHÉR AMD B450 alaplap, hátlappal, angol BIOS-szal. Mindent tud, amit a tajvani lapok, (ASUS, MSI, stb) Én Ryzen 7 1700X-el és 3500X-el teszteletem, mindkét procival működnek a márkás RAM XMP beállításai. Re-Sizeable BAR is támogatott BIOS szinten is.Új, 0km-es kondikkal, biztos, hogy tovább fog működni, mint egy X éves használt lap.
Az ár fix! Utolsó darab!

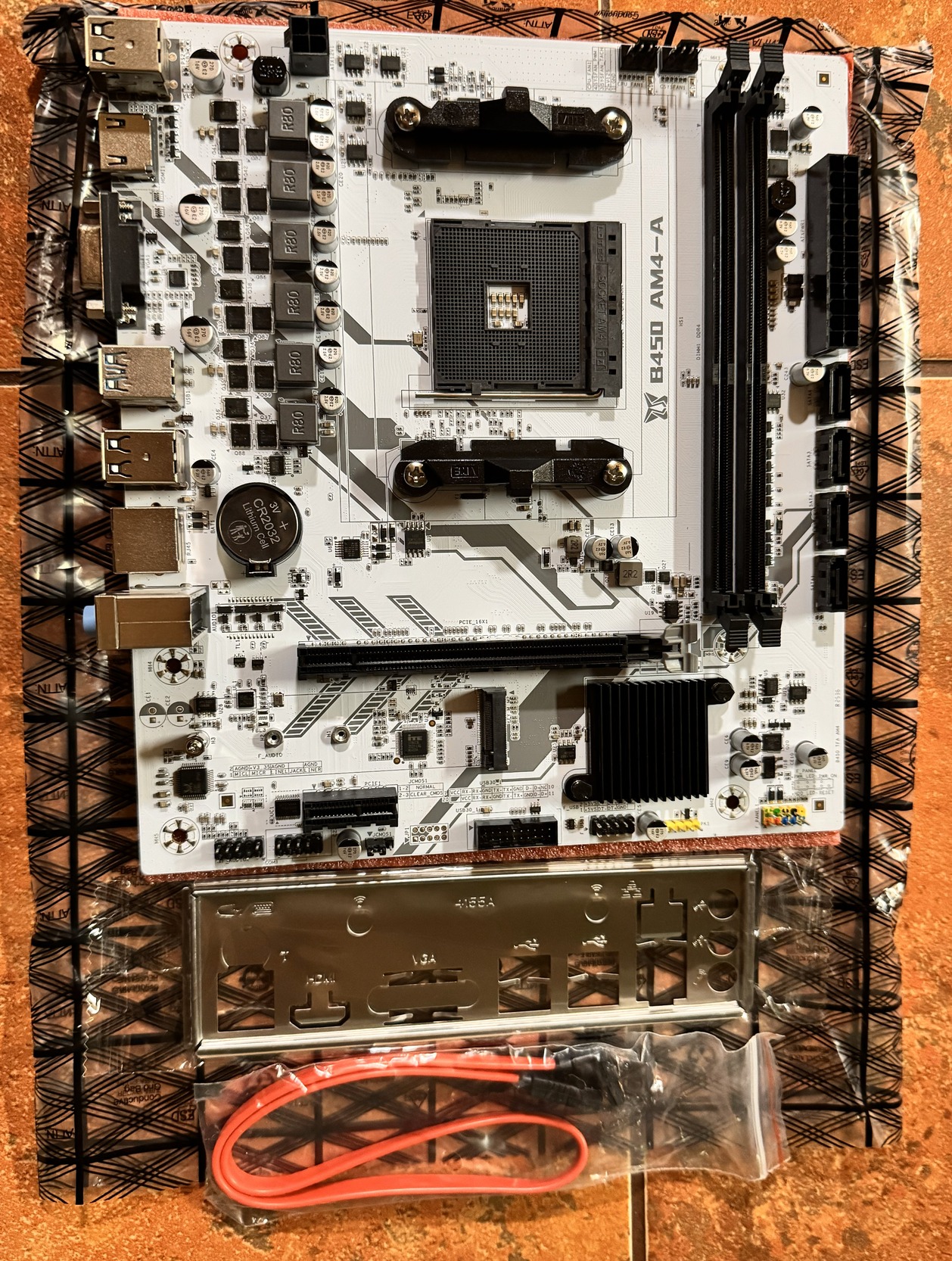

B450 AM4-A Motherboard
Processor
Supports AMD Ryzen 5000/4000/3000/2000/1000 Series CPU processors withAMDAM4socket Like AMD Ryzen 3/5/7/9 Series, etc.)
Southbridge AMD B450 Chipset
RAM
Technology Dual Channel, DDR4 Desktop/NON-ECC RAMMaximum
Capacity
64GB (32GB*4)
Memory Slot 2* DDR4 (2133/2400/2666/2800/2933/3000/3200/3600MHz)
Back Panel
I/O Ports
Display Interface 1* VGA, 1* HDMI-compatible
USB 2* USB 3.0, 4* USB 2.0
Ethernet 1 * Gigabits LAN Card
Audio Jacks 3* Audio jacks(Line-in、Line-out、Mic-in)
Internal I/O
Ports
USB 1* USB 3.0, 1* USB 2.0
F_Audio1 1* Front Front Audio pin
SATA Interface 4* SATA 3.0 (6Gb/s) connectors
ATXPWR Interface 1*24-pin Power connector；1*4-pin CPU Power connector
FAN Interface 1* 4-pin CPU Fan connector, 1* 4-pin SYS Fan connector
M.2 Socket 1* M.2 Socket (Support NGFF/NVME Protocol)
BAT1 1* Battery slot (the CR2032 battery)
COM1 1* COM header(s)
JCMOS1 1 * Clear CMOS button
SPK1 1* 4-pin SPEAK
F_PANEL1 1* System panel connector
PCIe Slot 1* PCIe 3.0 x16；1* PCIe 2.0 x1
Environment
Temperature
Range
Working Environment Storage Environment
Temperature：0～50°C
Humidity：5%~95%
Temperature: -20~70°CHumidity: 5%~95%Physical Size Size 220mm*200mm, M-ATX
