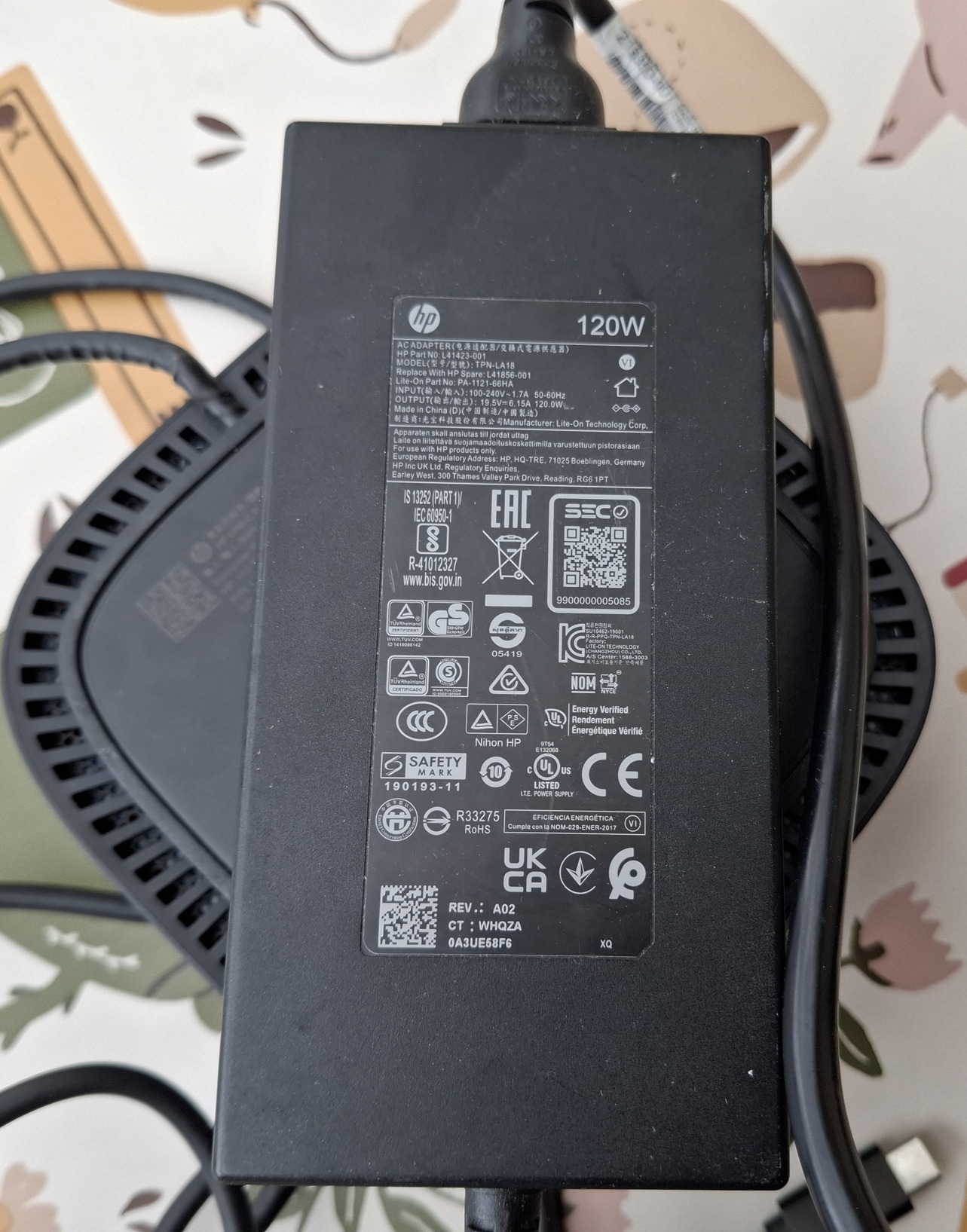

HP USB C dokkoló 120W táppal
Part number 5TW10AA/5TW10UT/5TW10ET
Dimensions (L x W x H) 4.80 x 4.80 x 1.77 in (122 x 122 x 45 mm)
Weight 1.49 lb (0.68 kg)
Top components Mechanical power button with LED indicator to power or wake host system1
Front components 1 x USB-C® 3.2 Gen 1 port with data and power out (15W)
1 x USB-C® cable to connect to host system (1 meter cable length)
Side components 2 x USB-A 3.2 Gen 1 charging ports
1 x Combo audio jack

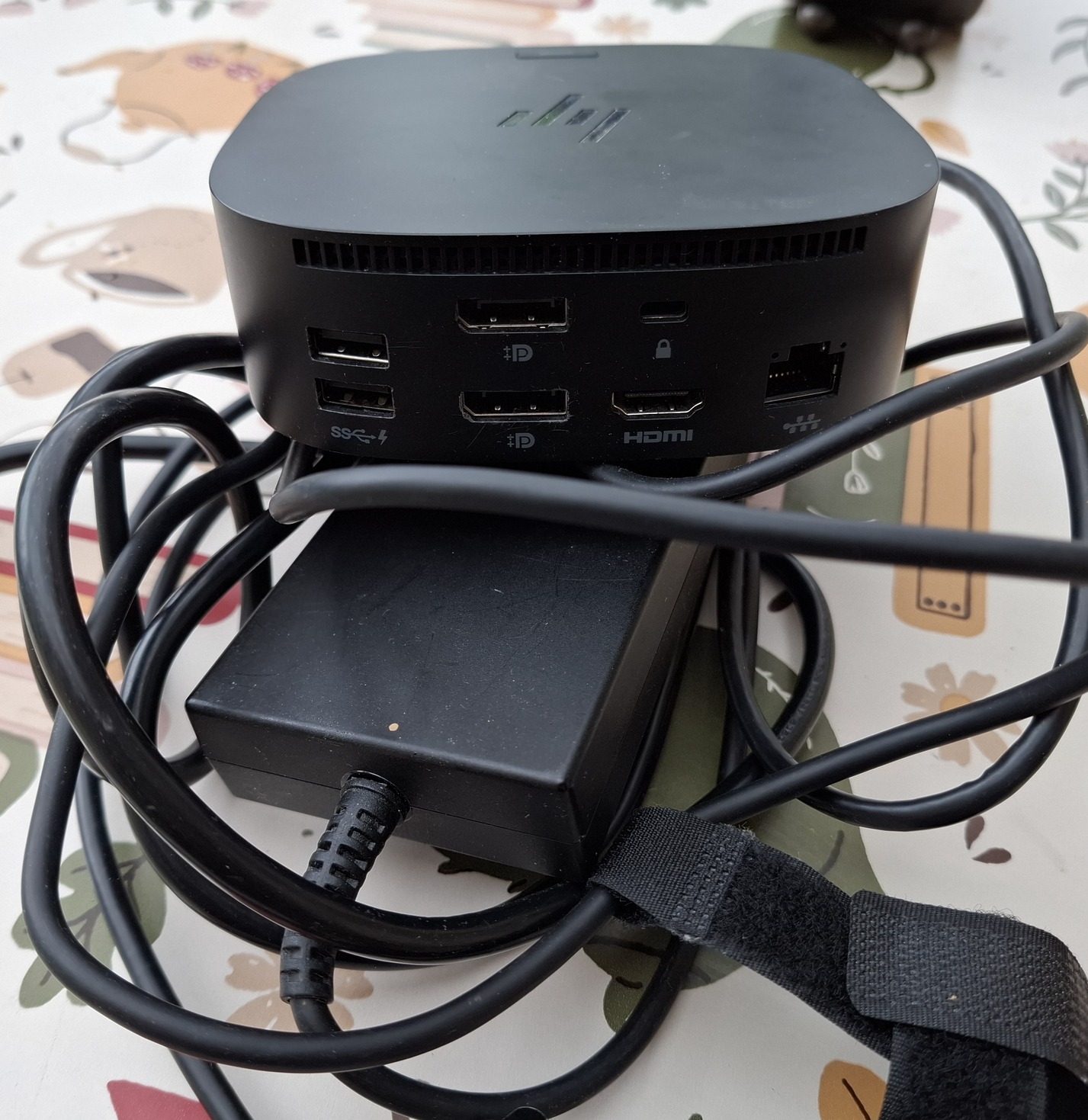

Back components 2 x USB-A 3.2 Gen 1 charging ports
2 x DisplayPortTM 1.4 ports
1 x RJ45 port (10/100/1000)
1 x HDMI 2.0 port
1 x Standard lock slot
External monitor support For hosts that support DisplayPort 1.4 with Display Stream Compression:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
3x 4k @ 60 Hz
For hosts that support DisplayPort 1.3/1.4:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
2x 4K @ 60 Hz
For hosts that support DisplayPort 1.2:
3x FHD @ 60 Hz
2x QHD @ 60 Hz
1x 4K @ 60 Hz
Networking Supports 1 Gb of Ethernet
Power to system Up to 100W via USB-C®.
Up to 75W on non HP machines.
Separate AC power needed for HP ZBooks that require more than 100W power delivered via
USB-C alt mode.
Power to host (USB-C PD) 5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX
